Technical data
Data from our product flyers and the brochure. Full specifications, series tables and test reports are in the catalogues.
ORISONIC bolt axial force testing
Retorquing every bolt on a schedule tells you nothing about the bolts that are actually loose, and it wears the threads of the ones that are fine. The ORIBOLT X system by ORISONIC measures the real axial force in each installed bolt, without contact and without disassembly, so a bolting campaign is directed only at the joints that need it.
Every bolt, not a sample. We can test a complete flange in one visit and report the axial force of each bolt, showing under-tightening and missed bolts. A record that follows the turbine. Each measurement is stored per bolt, so the next inspection shows the trend.
- Measure every bolt
- Store per bolt
- Report per flange
- Retighten only flagged bolts
ORIBOLT X Series
The ORIBOLT X series measures bolt axial force with advanced electromagnetic ultrasonic (EMAT) sensors and the dual-wave principle. It directly measures the absolute axial force (preload) of bolts in service, quickly identifies loose and broken bolts, and greatly reduces labour, downtime and maintenance costs.
- Direct measurement of the absolute bolt axial force (preload). Loose and broken bolts identified fast, no more relying on torque.
- Greatly reduces maintenance time, labour and downtime costs.
- EMAT technology, unlike piezoelectric ultrasound: no grinding, no couplant, no adhesive patches. Simple to use, low cost.
- Contributed to drafting GB/T 43232-2023, Ultrasonic measurement method for axial stress of fasteners.
| Item | Specification |
|---|---|
| Detection method | EMAT single-wave and dual-wave methods, no couplant |
| Bolt range | M8 to M72, length up to 6000 mm |
| Bolt end surface | Flat bolt end; works with hex socket, centre hole or raised stamp marks |
| Axial force accuracy | ±1 % to 5 % |
| Manual testing speed | 4 to 10 s per bolt |
| Probe type | EMAT probes, multiple models for different bolts |
| Item | Specification |
|---|---|
| Axial force measurement and monitoring | Automatic measurement and data storage, fully traceable |
| Automatic recognition | Automatically detects the ultrasonic echo onset and calculates the time of flight |
| Data storage and playback | Ultrasonic waveforms stored and replayed for later verification and traceability |
| Measure first, calibrate later | Without calibration data, measure first and calibrate afterwards |
| Material library | Calibration database for different bolt grades, available at any time |
| Automatic reports | One-click export of bolt data to Excel, rose chart and histogram |
| Camera monitoring | Dual cameras record working conditions and test personnel in one click, for review and on-site supervision |
Trusted by
Reference customers of ORISONIC Technology; WindX UCP is the authorised partner for wind power applications
Manufacturer: ORISONIC Technology (Suzhou) Co., Ltd., Suzhou, China

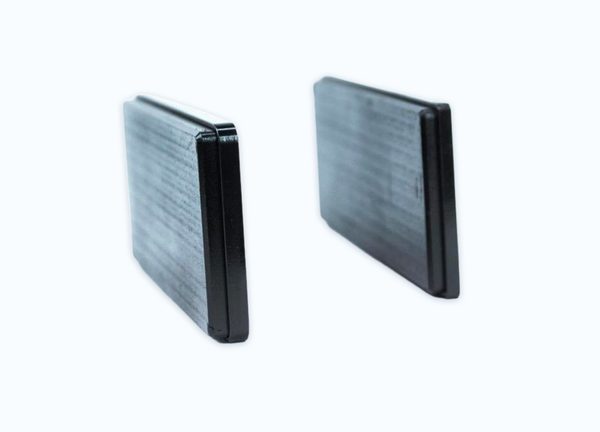

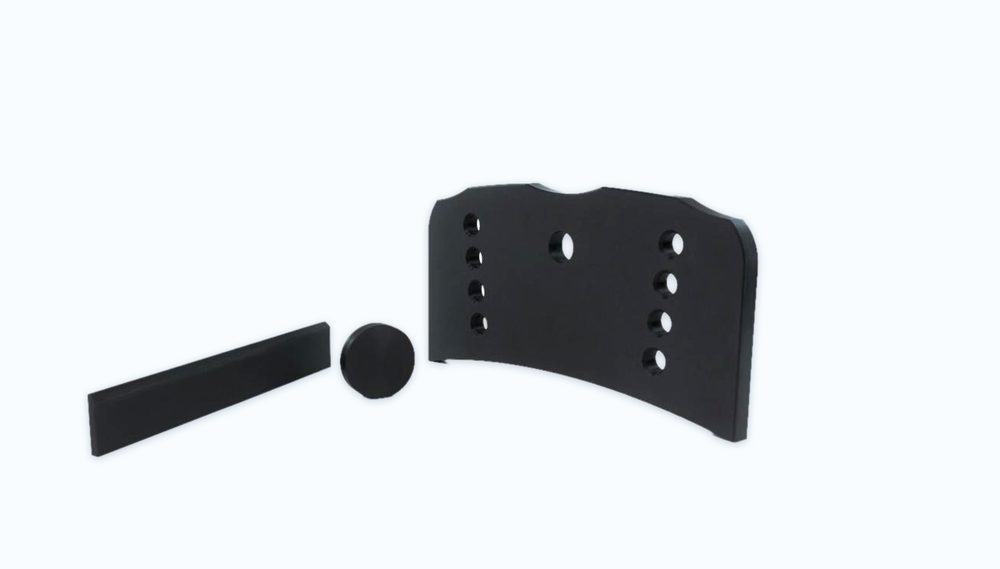

WindX UCP-GNE silent yaw pads and brake pads
Yaw brake noise and vibration are among the most common recurring faults we see on ageing fleets, and the usual fix is a temporary one. We supply and fit WindX UCP-GNE composite yaw pads and brake pads that hold a stable friction coefficient over their service life, protect the friction disc and remove the vibration at its source. Fits are available for Vestas, Siemens Gamesa, GE, Goldwind, Envision and other mainstream platforms.
WindX UCP-GNE silent yaw pads and brake pads replace greased sliding liners and metal-filled brake pads with a nano-composite material. Made by GreenIdea, the series needs no grease and holds a stable friction coefficient over its service life.
No grease needed
A stable friction coefficient, 0.10 to 0.14 for RD-JZ yaw pads. No added grease.
Cold and oil resistant
Performance unchanged below −40 °C and not affected by gear or lubricating oil. Water absorption 0.001 %.
Wear resistant
Wear rate of 1 µm/km for RD-JZ yaw pads, in a nano-composite polymer material.
Matched per turbine
Upper and lower pads are specified per turbine platform. Fit lists below.
Performance figures are manufacturer data from GreenIdea New Energy for the WindX UCP-GNE product line. Independent SGS test reports on the GreenIdea materials are available on request. These are product test reports, not company certifications.
Platform fits
Shown: 7 of more than 20 platform fits.
| Property | Method | RD-JZ yaw pads | RD-JQ brake pads | RD-SCP cylinders |
|---|---|---|---|---|
| Dry and dynamic friction coefficient | ISO 7148-2 | 0.10 to 0.14 | 0.4 | 0.3 to 0.4 |
| Rate of wear | ISO 7148-2 | 1 µm/km | 6.8 µm/km | 2 µm/km |
| Max. allowable static / dynamic load | 220 / ≥ 150 MPa | 100 / ≥ 90 MPa | 100 / ≥ 90 MPa | |
| Temperature, continuous / short time | −50 to +100 / 165 °C | −50 to +100 / 165 °C | −50 to +100 / 165 °C | |
| Compressive strength | ≥ 190 MPa | ≥ 90 MPa | ≥ 90 MPa | |
| Impact, un-notched / notched | 210 / 160 kJ/m² | 150 / 120 kJ/m² | 150 / 120 kJ/m² | |
| Water absorption, 24 h at 23 °C | 0.001 % | 0.001 % | 0.001 % | |
| Density | ISO 1183-1 | 0.98 g/cm³ | 1.3 g/cm³ | 1.3 g/cm³ |
Manufacturer data, GreenIdea. Continuous temperature is stated for 5,000 h. Full tables and test reports are in the catalogue.
| Product line | Platforms in the current fit list |
|---|---|
| RD-JZ silent yaw pads (sliding liners) | Vestas, copper bush liner, Gamesa, Envision, Sinovel, CRRC, XJ Group, Shengu Group, Jingcheng New Energy, Tianwei |
| RD-JQ silent yaw brake pads | Gamesa, Goldwind, HEW, Jiuhe Energy, XEMC Wind Power, Windey |
| RD-SCP copper sleeve cylinders | GE, Envision |
| Other platforms | GE Vernova, Mingyang, Shanghai Electric, United Power, Dongfang Electric, Sany RE, CSSC Haizhuang: fit assessment on request |
Our customers
Manufacturer: GreenIdea New Energy Technology Co., Ltd., Beijing, China. WindX UCP ApS is the authorised reseller.
WindX UCP-HNH blade monitoring
A blade fault shows up in two places before it becomes a tower strike: the tip clearance and the sound.
- Cameras and edge computing in the nacelle measure tip clearance in real time.
- Acoustic sensors compare the fingerprint of the three blades against each other.
- When one blade drifts, the owner knows which one and how fast, with the data stored per blade for warranty and insurance discussions.
Supplied and installed by WindX UCP with Hanenghua Technology; monitoring data available through the owner’s SCADA or a standalone dashboard.
Arc flash protection
Electrical faults are the leading cause of turbine fires, and a nacelle fire is a total loss. We fit active arc flash protection that senses temperature and smoke and trips the fault in milliseconds. The units are built for the vibration and dust of a nacelle, install without rewiring, and report their status remotely.
- Plug-and-play modules with remote status reporting.
WREN hydraulic tooling in China
Through our China-based service network, WindX UCP provides access to WREN hydraulic bolting solutions, including torque wrenches, tensioners, pumps and cylinders, with sales, calibration, repair and rental.
WREN first-level agency appointment for the wind power industry in China is held by Tianjin United Creation New Energy Technology Co., Ltd. (valid February 2025 to February 2027), not by WindX UCP ApS.
Let’s talk about your fleet
Independent wind O&M, major component services, and advanced reliability solutions.
