EMAT bolt axial force testing system
ORIBOLT X bolt axial force testing

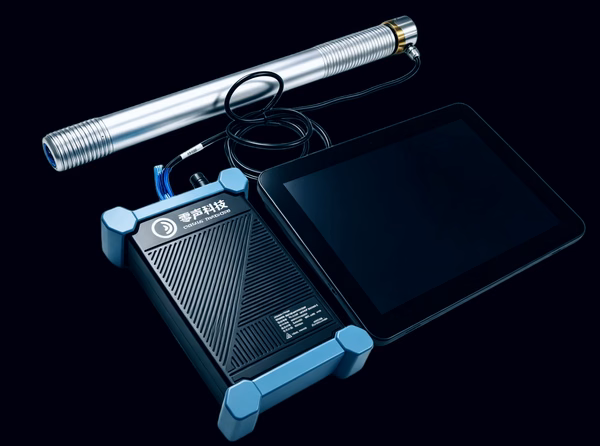

The ORIBOLT X system by ORISONIC measures the real axial force in each installed bolt, without contact and without disassembly, so a bolting campaign is directed only at the joints that need it.
Key points

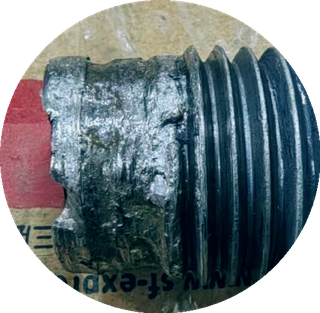

Direct measurement of the absolute bolt axial force (preload). Loose and broken bolts identified fast, no more relying on torque.
Greatly reduces maintenance time, labour and downtime costs.
EMAT technology, unlike piezoelectric ultrasound: no grinding, no couplant, no adhesive patches. Simple to use, low cost.
Contributed to drafting GB/T 43232-2023, Ultrasonic measurement method for axial stress of fasteners.
M8 to M72Bolt range
4 to 10 s per boltManual testing speed
±1 % to 5 %Axial force accuracy
In four steps
- Measure every bolt
- Store per bolt

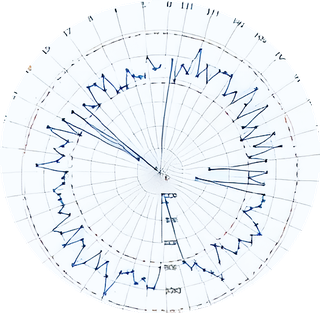

- Report per flange
- Retighten only flagged bolts
Trusted by

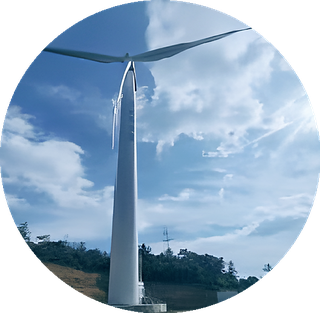

Reference customers of ORISONIC Technology; WindX UCP is the authorised partner for wind power applications
What you get from WindX UCP

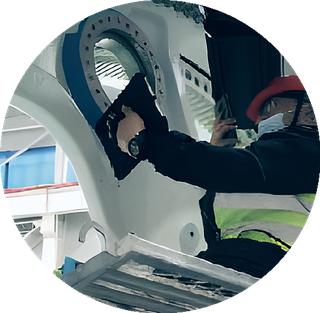

- We can test a complete flange in one visit and report the axial force of each bolt, showing under-tightening and missed bolts.
- A record that follows the turbine. Each measurement is stored per bolt, so the next inspection shows the trend.
- WindX UCP is the authorised partner for wind power applications
Full specifications, series tables and test reports are in the catalogue.
Talk to the team. sales@windxucp.com · Tel +45 87 58 69 00 · All contacts
Manufacturer: ORISONIC Technology (Suzhou) Co., Ltd., Suzhou, China
